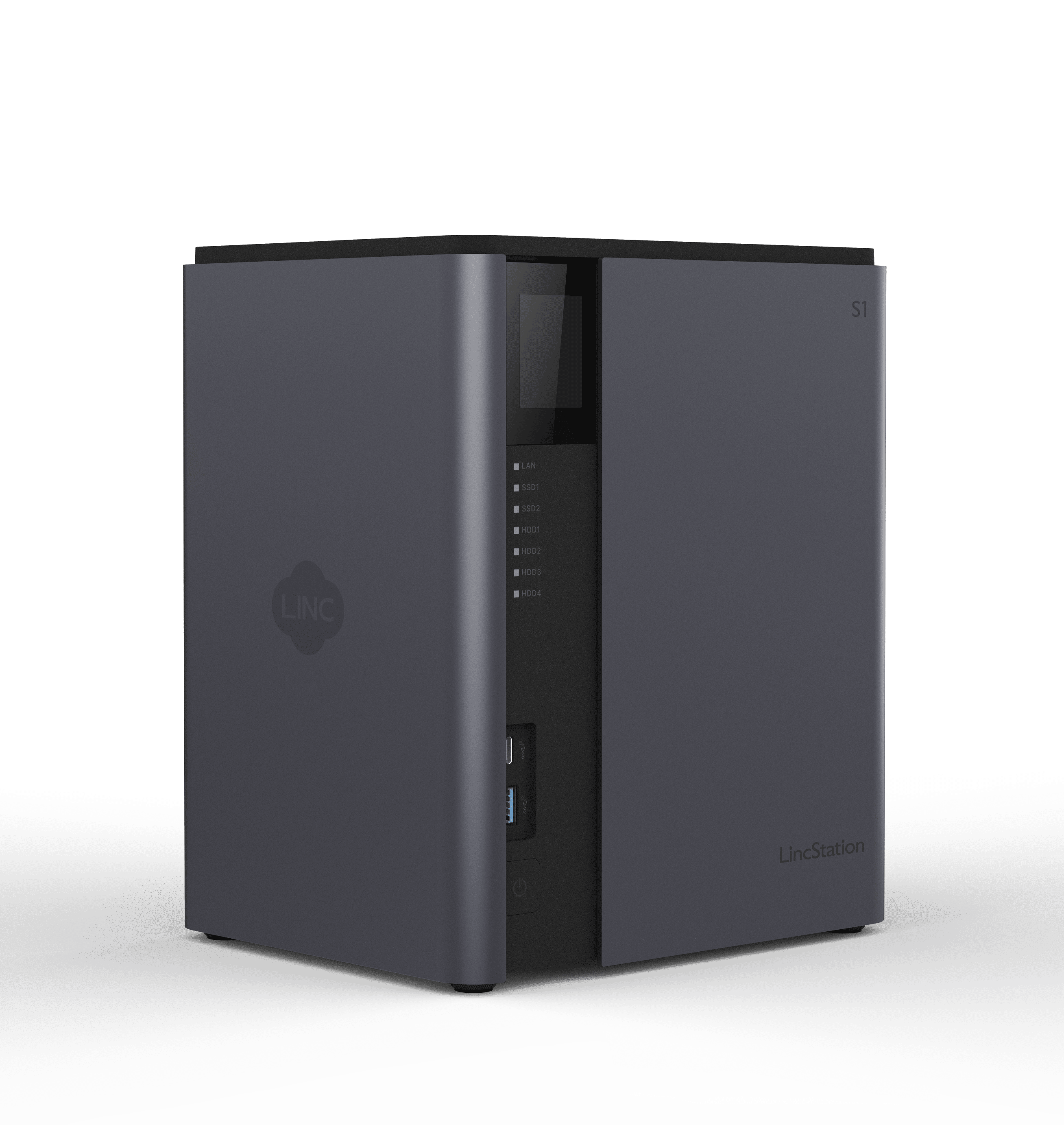

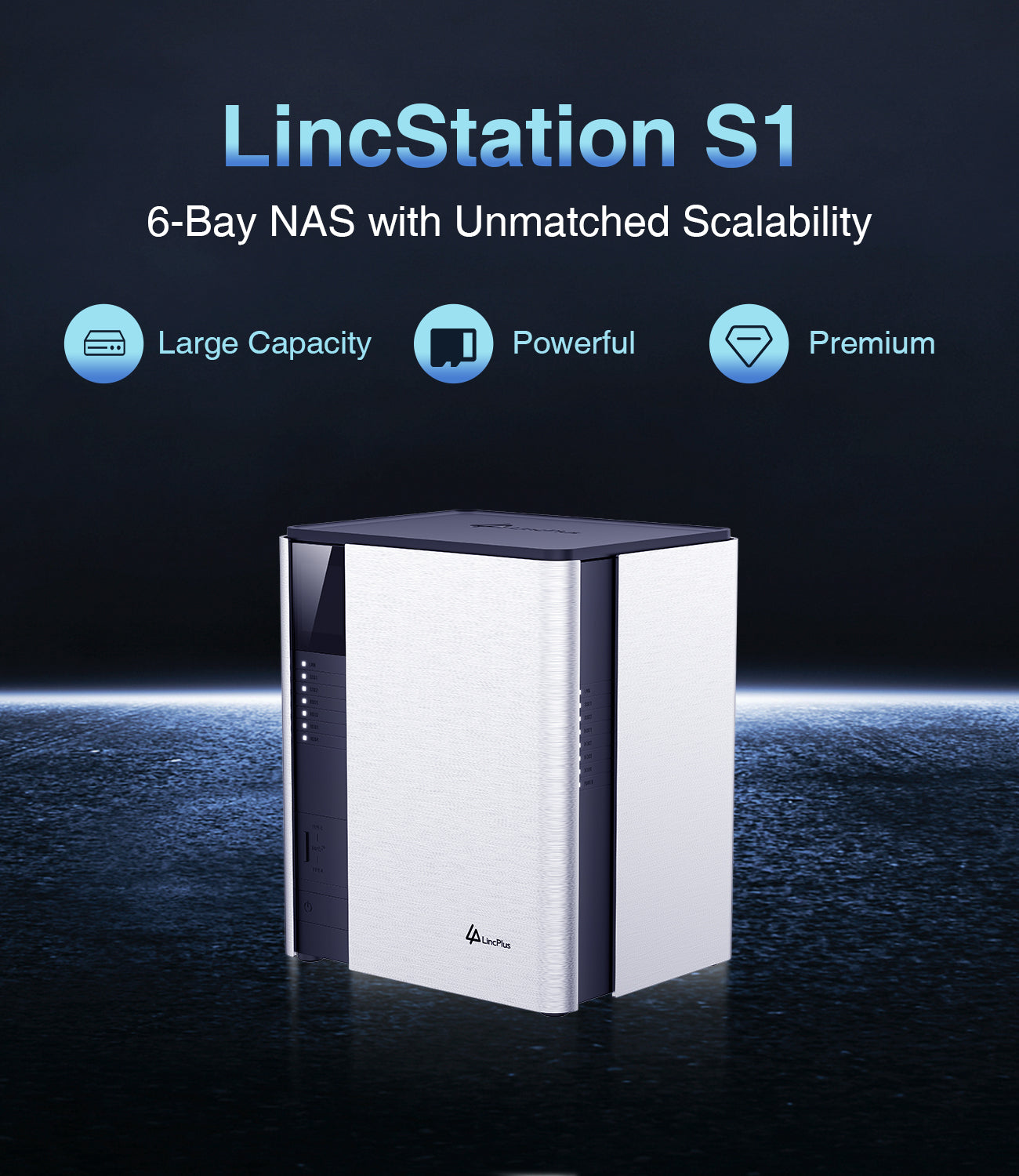

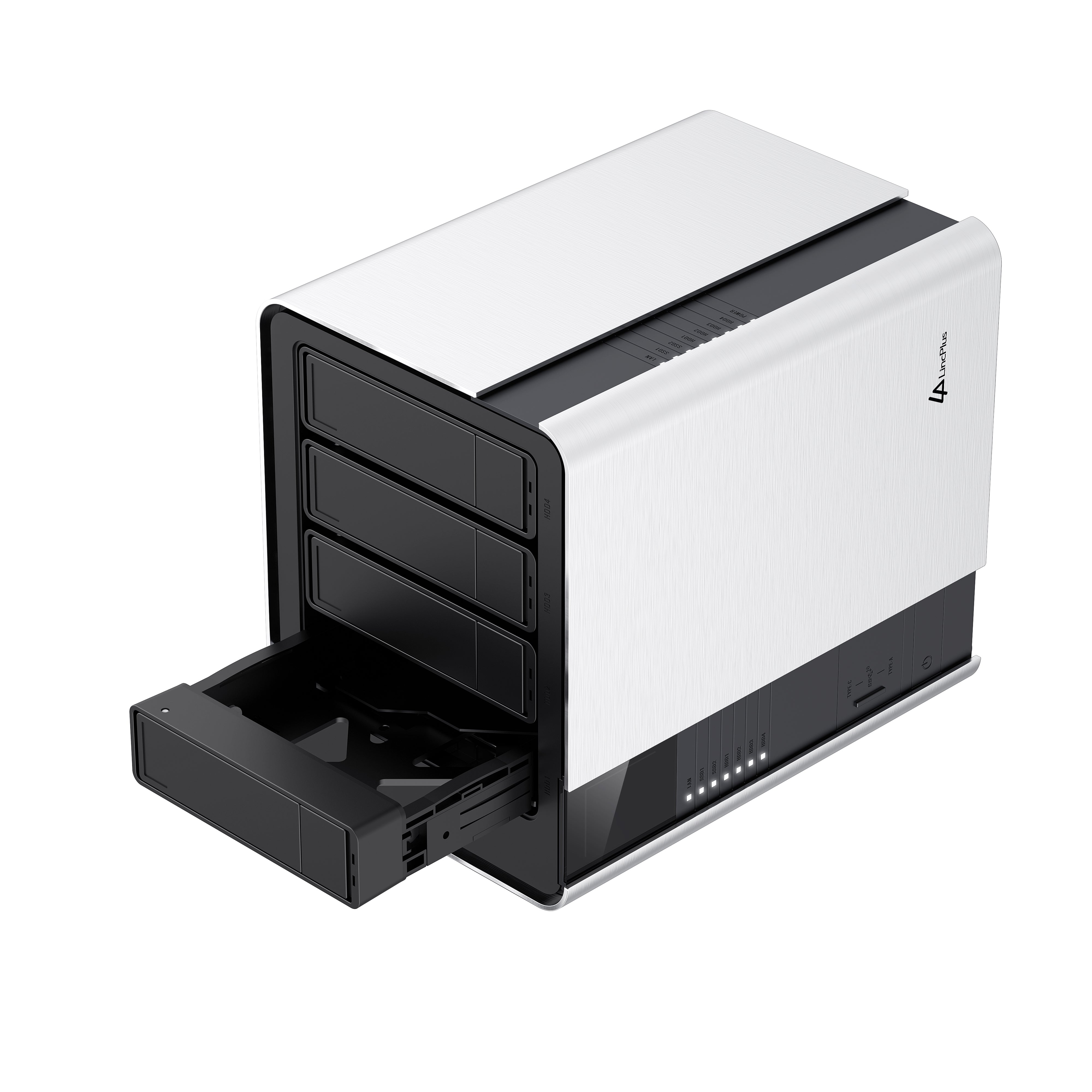

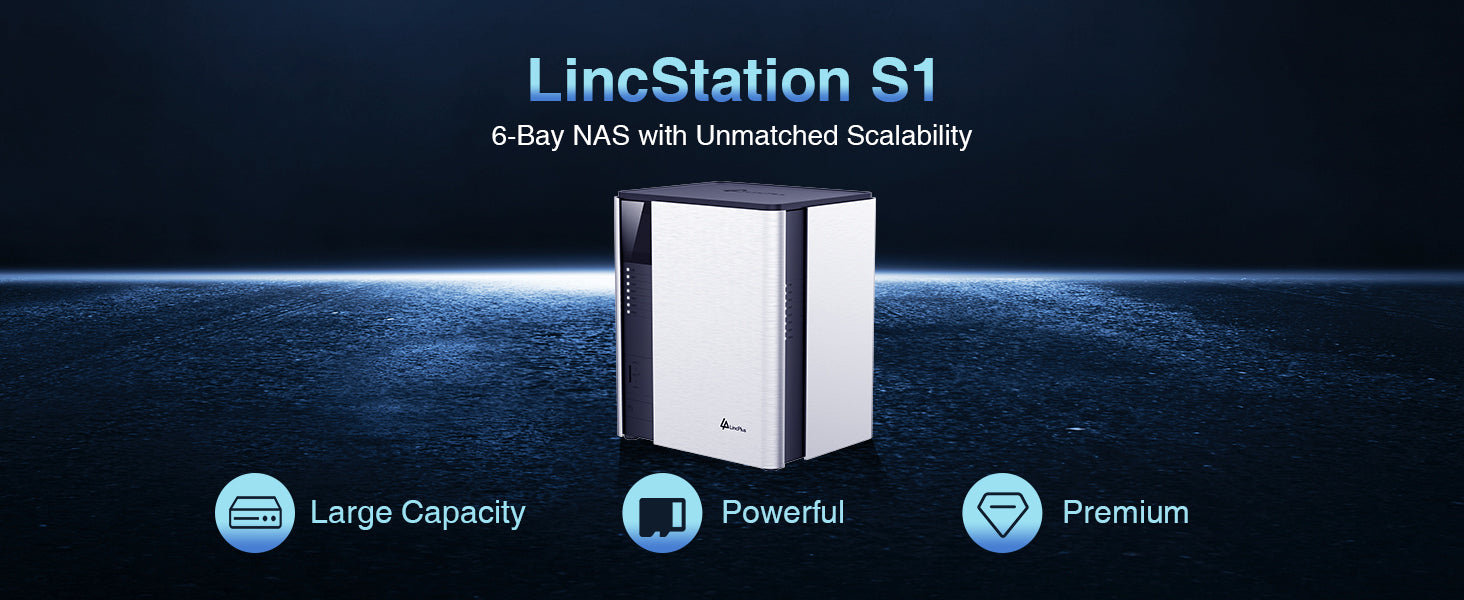

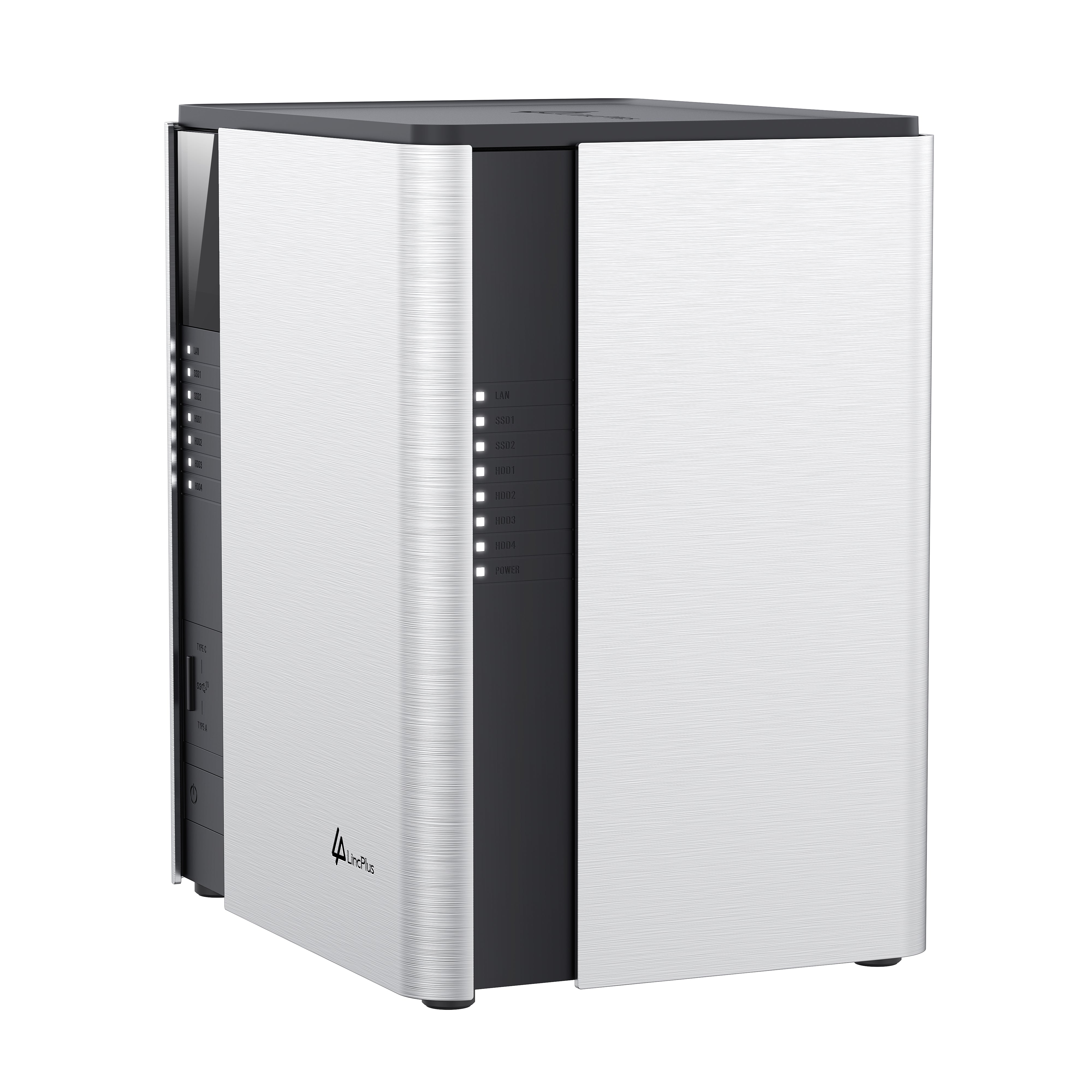

LincPlus LincStation S1 6-Bay NAS | 8GB RAM+128G ROM | Up to 112TB (Diskless)
- This nas storage supports full-featured docker and virtualization, comes with Unraid License. One-click deployment and installation of the docker application suite. Support to build virtual machines in the system, install Android, Linux, Windows, and support hardware pass-through (Unraid version). LincStation NAS is not only your network attached storage, but also a powerful private cloud and home server.
- The rich interface provides users with more possibilities. Everything you need is integrated in this 6 bay nas storage. 2 Bay PCIe M.2 2280（M.2 NVME） SSD Slot, 4 Bay 2.5 inch SATA SSD Slot. 2.5G Ethernet Port x2, USB C Port x1, 3.5 Audio Port x1, HDMI 2.0 x1, USB 3.2gen2 x2, USB 2.0 Type-A x 2.
- Our network attached storage adopts unraid disk array, even if one disk is damaged, it will not cause data loss, which can guarantee the user's data security to the greatest extent. Supports automatic backup, remote download, intelligent photo albums, music playback, and intelligent partition.
- The nas server is equipped with Intel Alder Lake N97 CPU. 7nm lithography, 4-cores, 8GB memory, 128GB ROM , 2.00 GHz base frequency, 3.60 GHz burst frequency. Powered by Unraid starter version system.
- When you have a NAS, you can centrally store and backup digital files stored on different devices to the NAS, and manage and share your files. When needed, you can connect to the NAS through the network to obtain them. NAS can be mounted on an internal network for personal or corporate use, or open for sharing on the internet. LincStation NAS provides a deep security protection mechanism to ensure the security of your cloud data layer by layer.
- Tax not included in US and other; Tax included in DE and UK.
- Click to LincPlus DE site
- Click to LincPlus FR site
- S1 is in pre-sale status and is expected to be shipped at the end of May. Buy the latest products with discounts now
Specification
Basic Data
CPU: Intel Alder lake-N N97, 4 cores 4 threads, up to 3.6 GHz, TDP 12W
OS: unRAID OS
Memory: DDR5 SODIMM,8G(Replaceable)
Storage 1: 128G eMMC
Storage 2: 4-bay, 4x SATA3.0 port (Support 2.5/ 3.5inch HDD/ SSD)

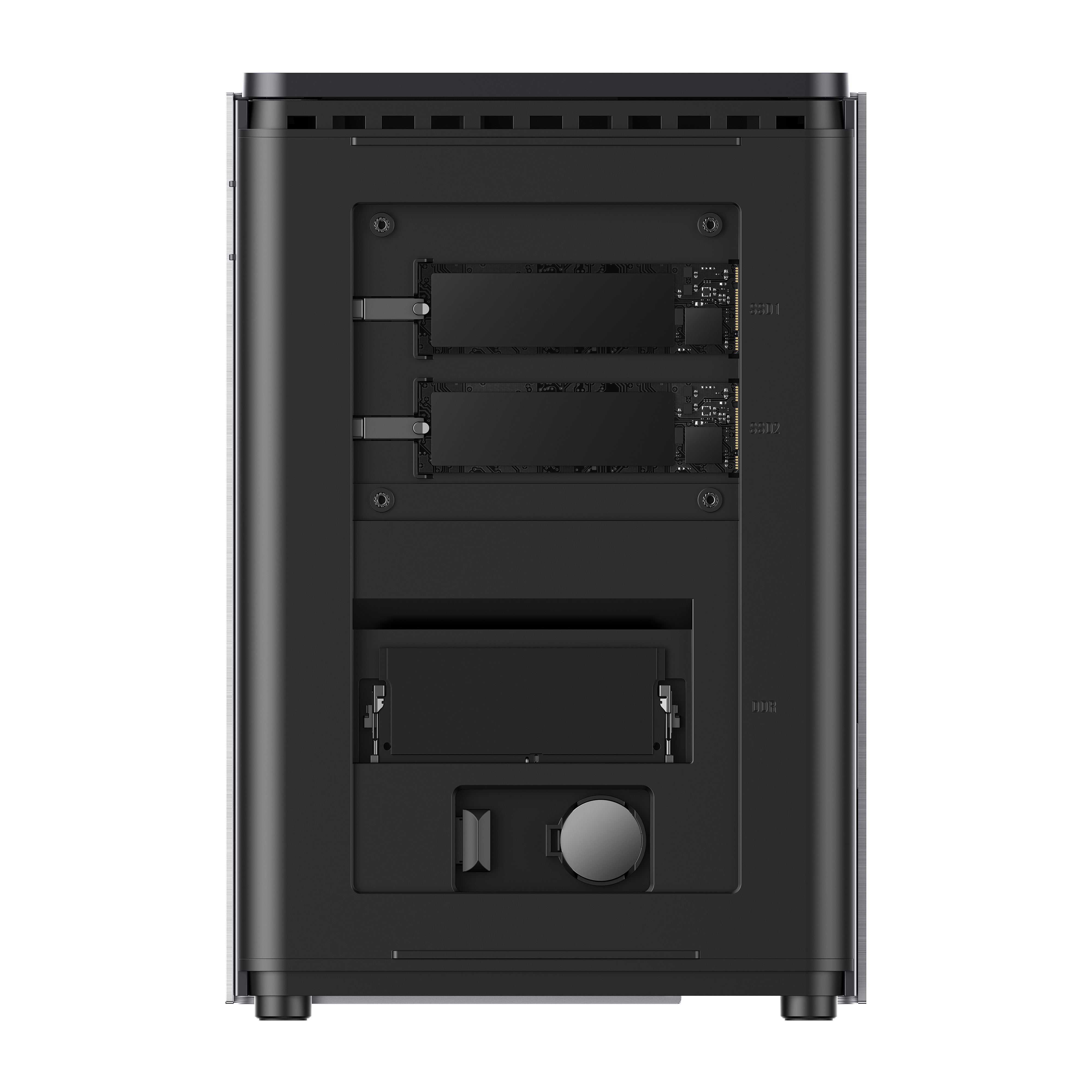

Storage 3: 2-bay, M.2 port, support M.2 2280 SSD, NVMe protocol

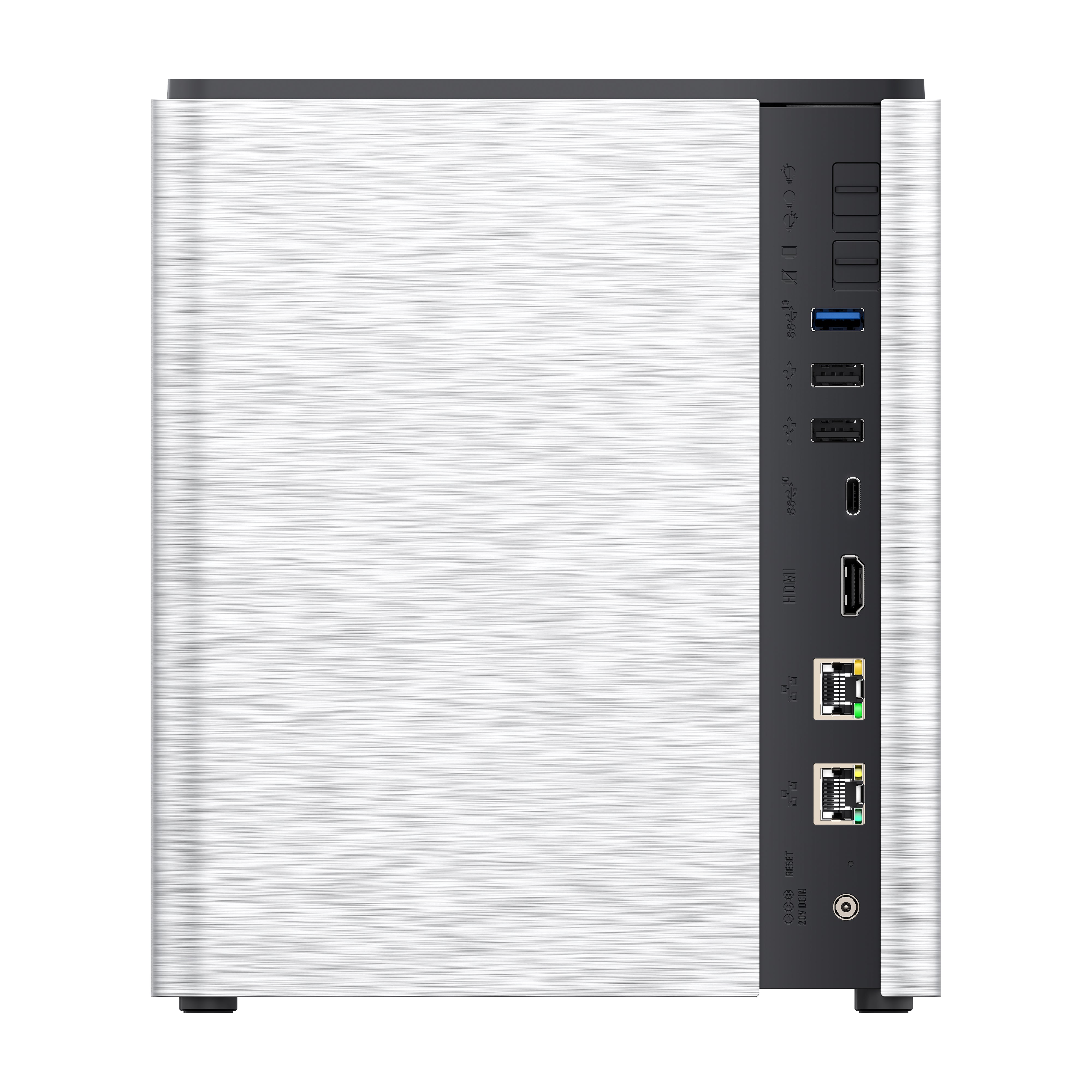

USB: 2 x USB3.2 gen 2 Type C, 2 x USB3.2 gen 2 Type A, 2* USB2.0 Type-A
HDMI: 1 x HDMI 2.0,TYPE A
DC Port: Yes，φ5.5*2.5mm
Button: Power button*1, Back toggle switch*2Switch 1#: (2-stage - on/off) for LCD screen. Switch 2#: (3-stage, front/back/off) for indicator light
RJ45: 2XRJ45 (2.5 Gigabit Ethernet Controller）

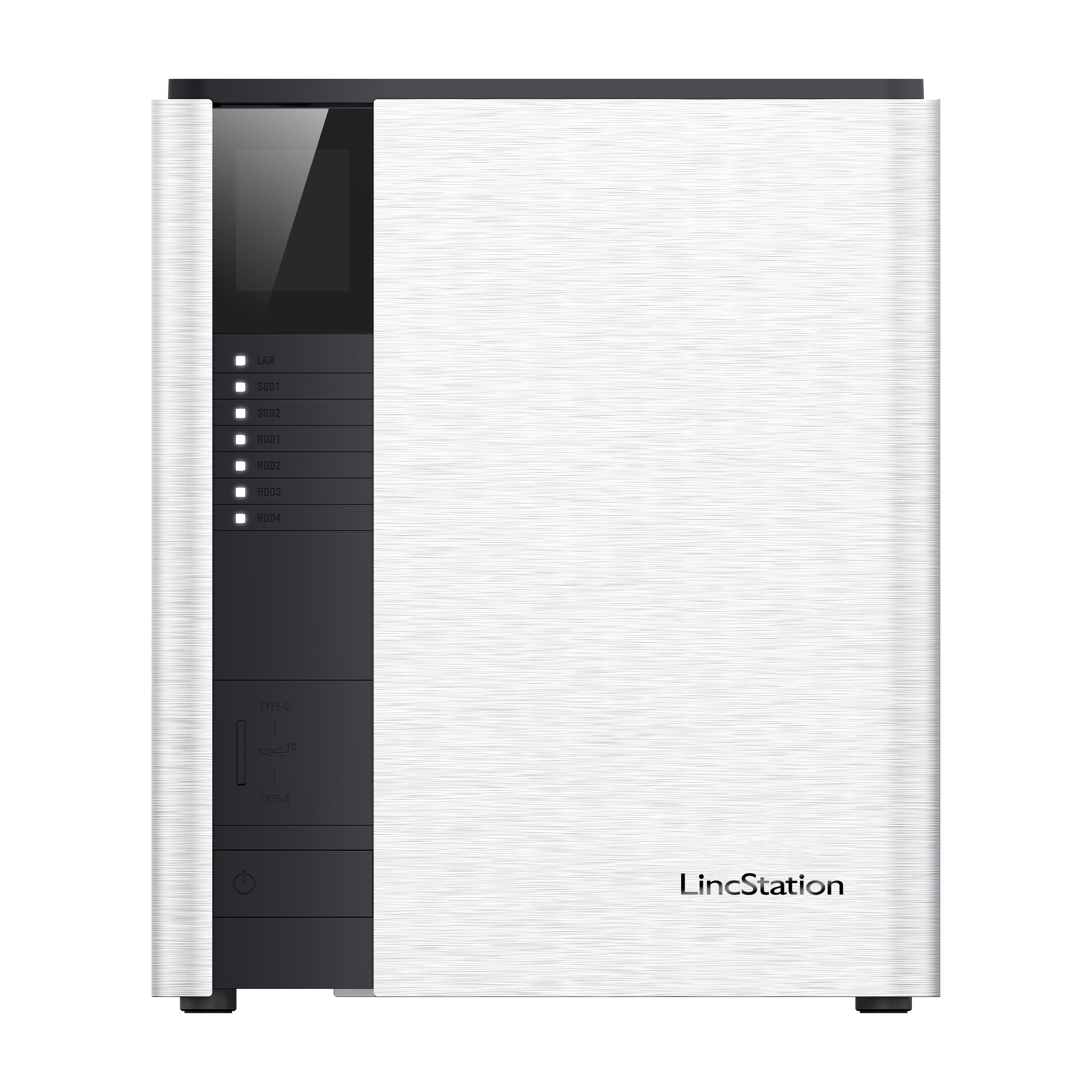

Indicator light: The 8 lights on the front are:
1*Power indicator light
1*Network status indicator
4*SATA interface hard disk indicator
2*NVMe interface hard disk indicator
8 side lights
LED: light strip
Charger: 20V 7A,DC
Dimension: 195x156x231mm
Weight: 2.9KG
Pay with Ease
Fast Shipping
30-Day Money-Back Guarantee
Secure Payment
Lifetime Customer Support

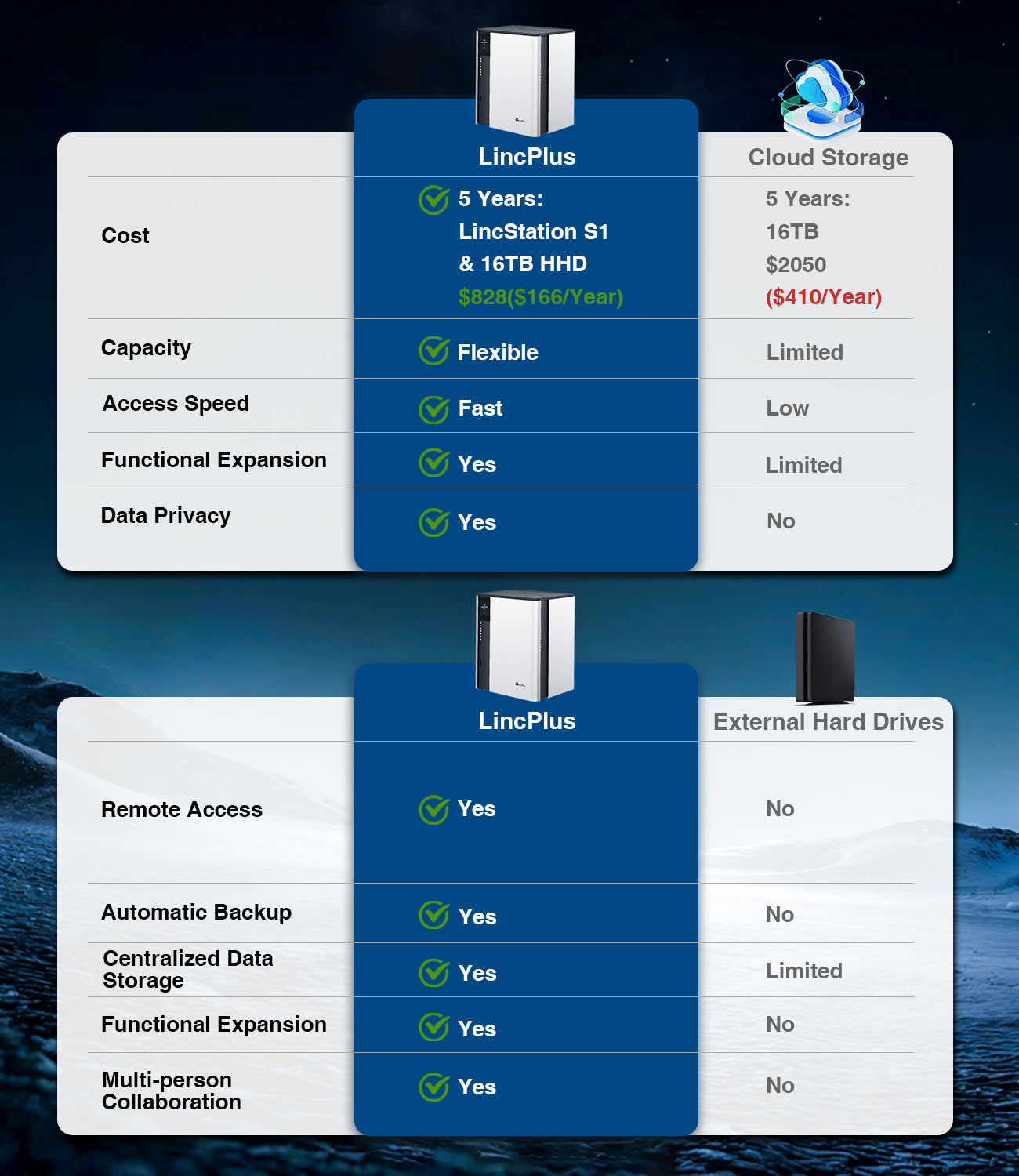

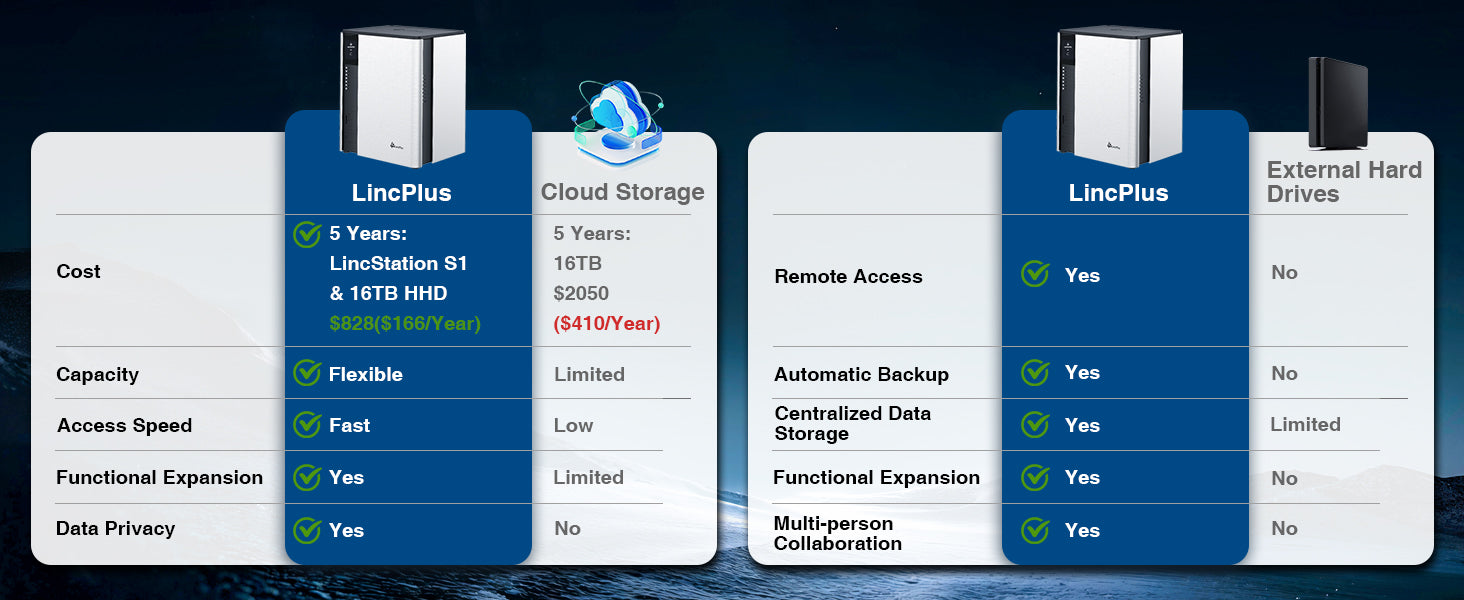

🚀 Why Choose LincStation S1 Over Cloud Storage and External Drives?
LincStation S1 gives you full control over your data with no monthly fees, offering always-on storage. Unlike cloud services
or external hard drives, it supports multi-user access, app integration, making it a smarter, more powerful solution for
backup, sharing, and media.

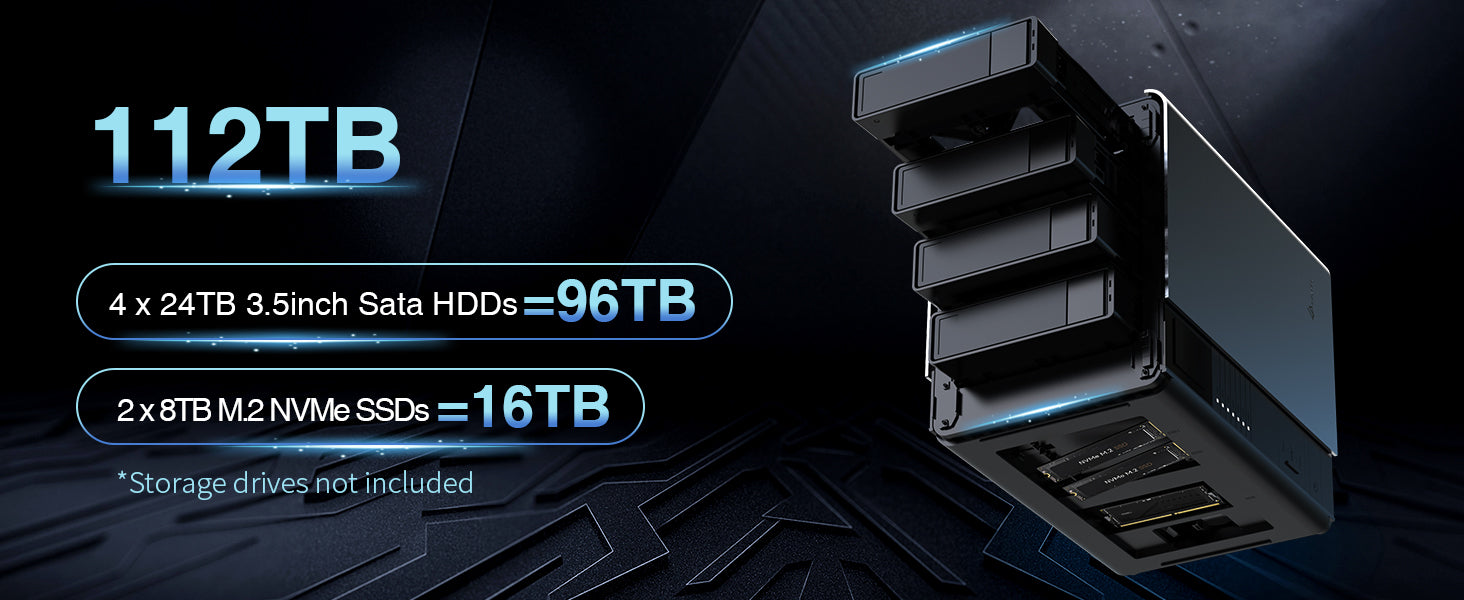

⚡ High-Capacity Hybrid Storage with Speed to Match
Built for serious storage needs, the LincStation S1 supports up to four 3.5" SATA HDDs and two NVMe SSDs, delivering a total
capacity of up to 112TB. Whether you’re archiving massive media libraries, running backups, or managing high-volume data,
the LincStation S1 offers the flexibility and speed to handle it all with ease.
🧠Powering Next-Gen NAS Workloads

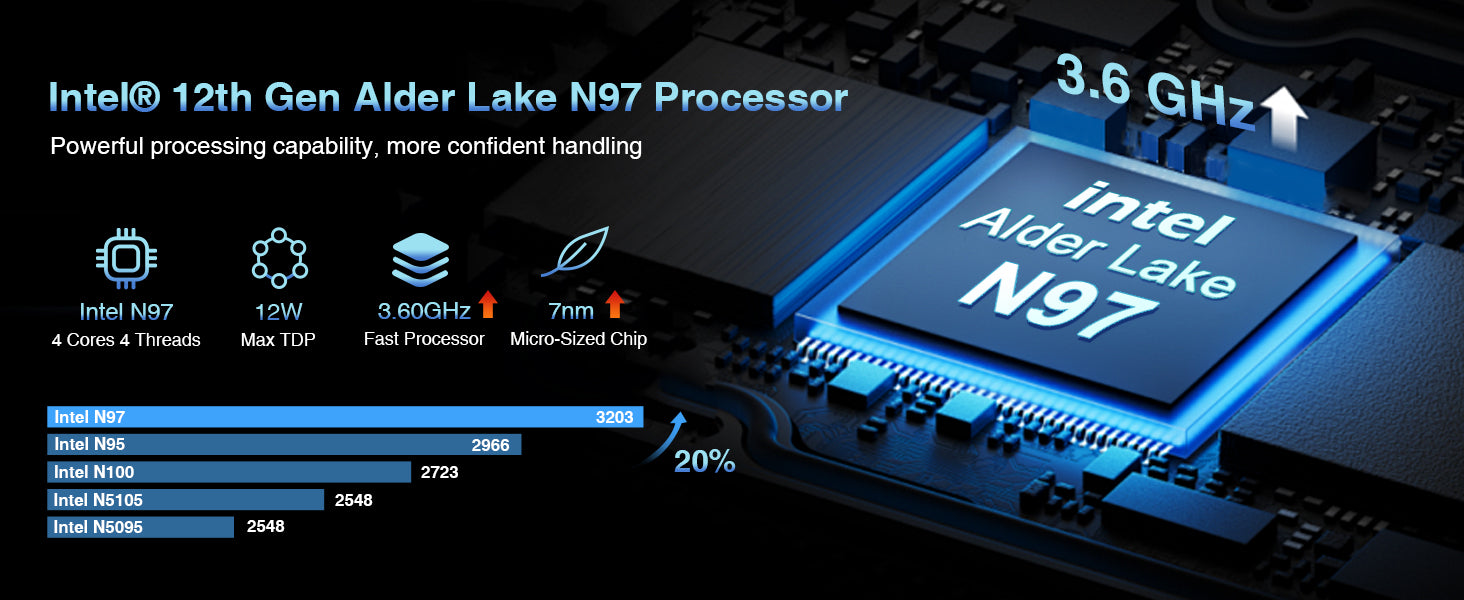

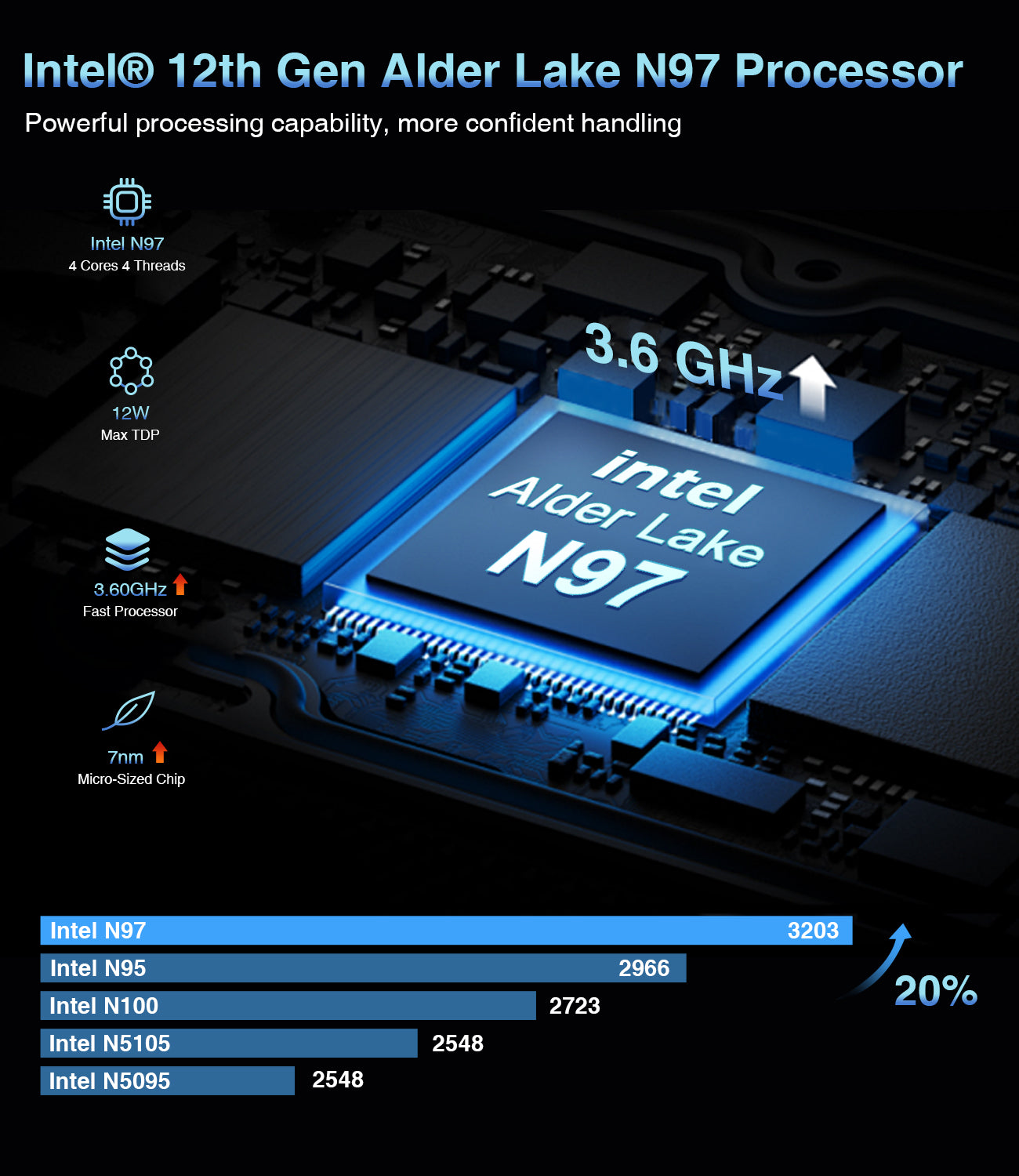

LincStation S1 is powered by the Intel N97 processor, offering up to 30% better single-core performance compared to the Celeron N5105.
With higher base and turbo frequencies, the N97 ensures faster app loading, smoother multitasking, and improved
responsiveness—perfect for demanding NAS tasks like 4K streaming, multi-user access, and virtualization.
🔗 Blazing-Fast Connectivity, Built for Your NAS

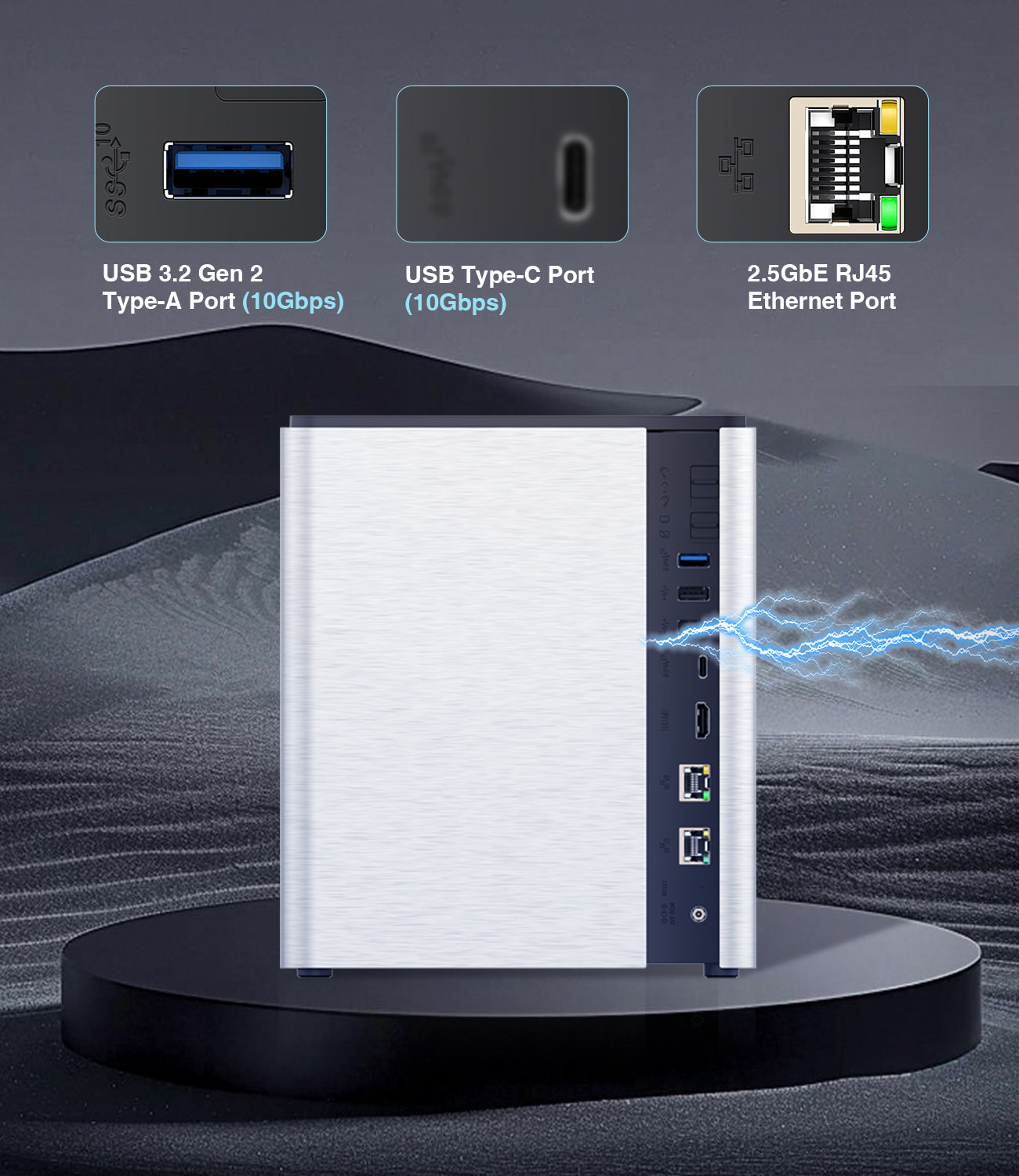

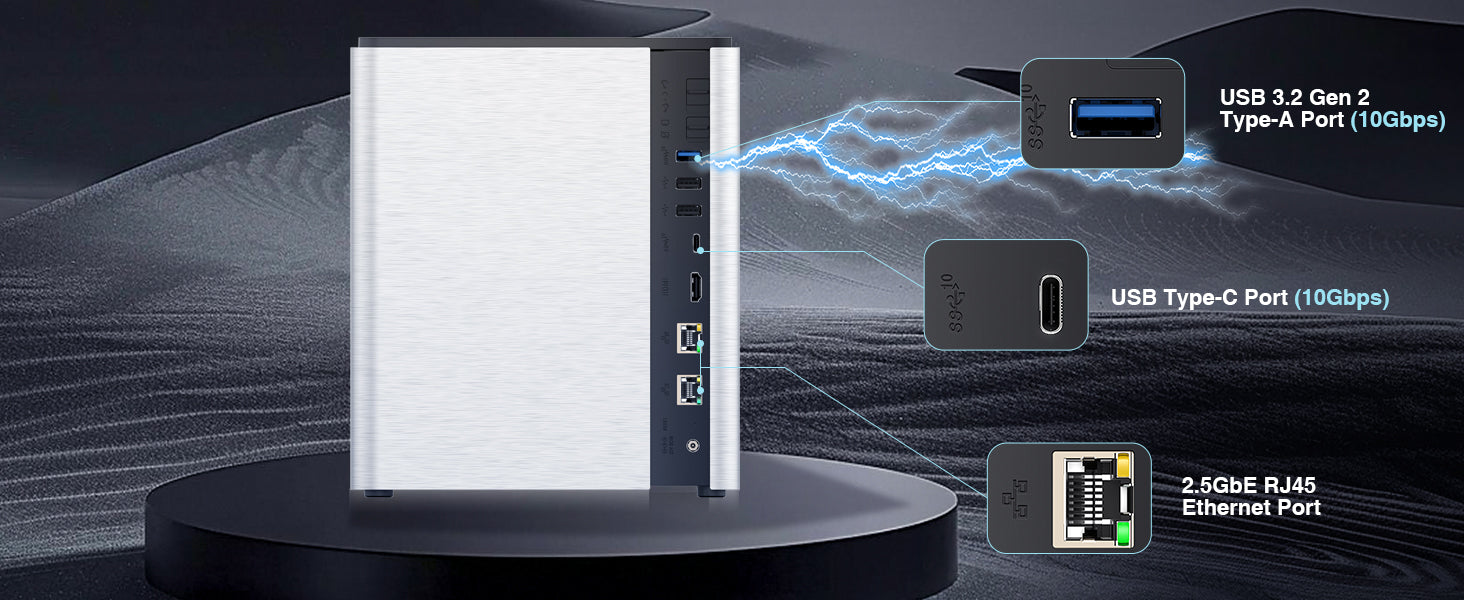

LincStation S1 is equipped with dual 2.5GbE ports and multiple 10Gbps connections, ensuring lightning-fast data transfer speeds
and reliable network performance. Whether you're handling large files, backing up data, or streaming high-definition media,
the LincStation S1 delivers a seamless, high-performance NAS experience for both home and business use.

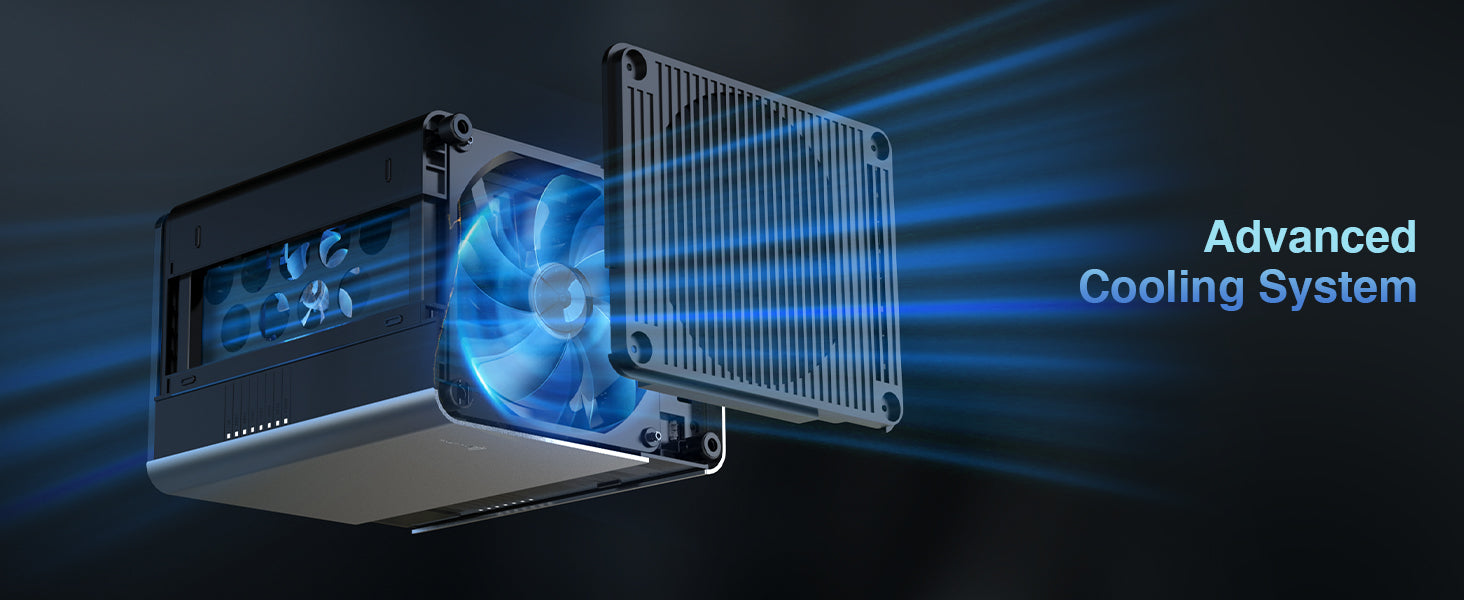

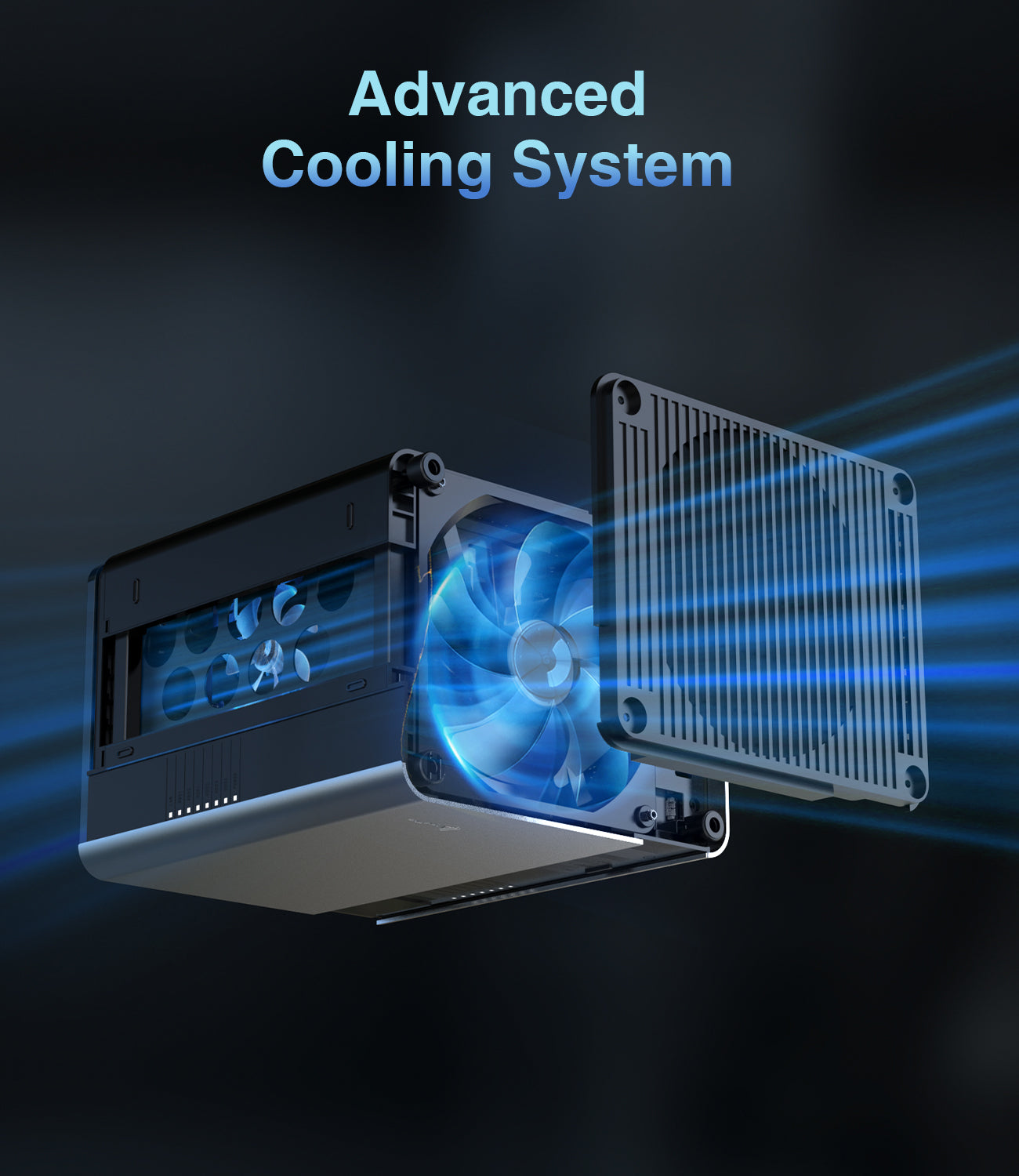

🧊Dual Fans. Maximum Stability
With its dual-fan cooling system, LincStation S1 delivers exceptional thermal performance—keeping internal components
cool even during intensive workloads. This ensures greater system stability, longer hardware lifespan, and reliable 24/7
NAS operation without overheating risks.

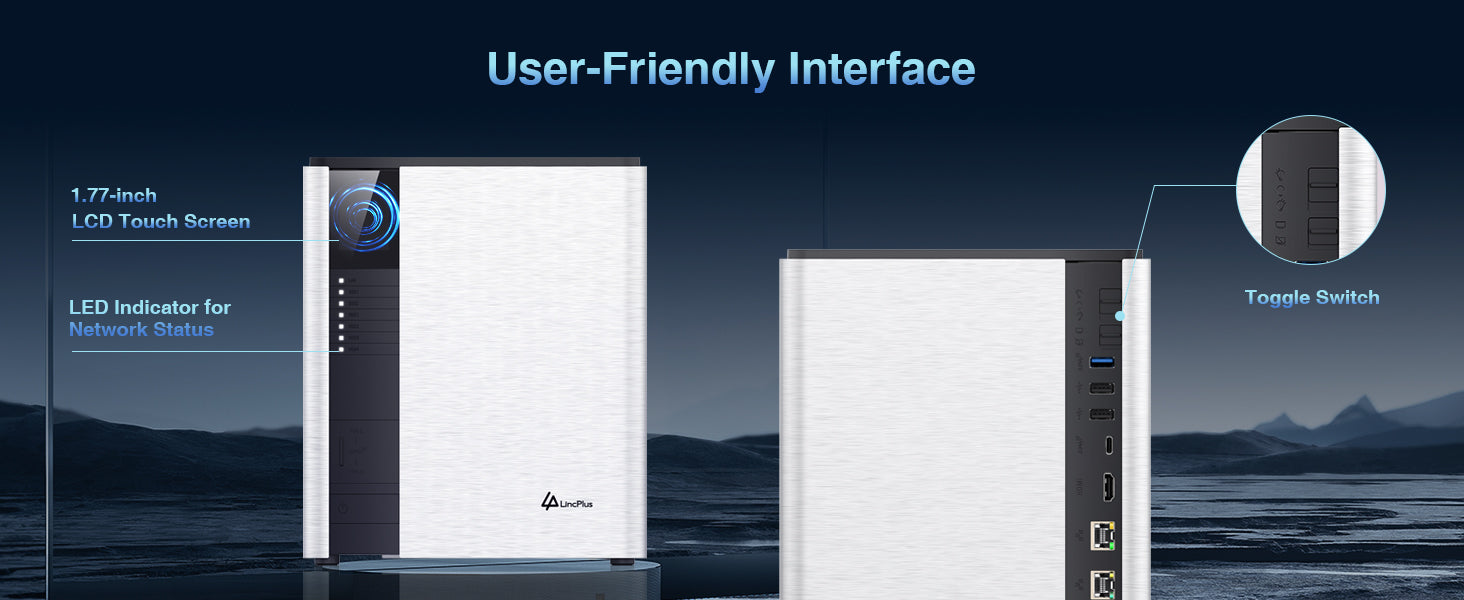

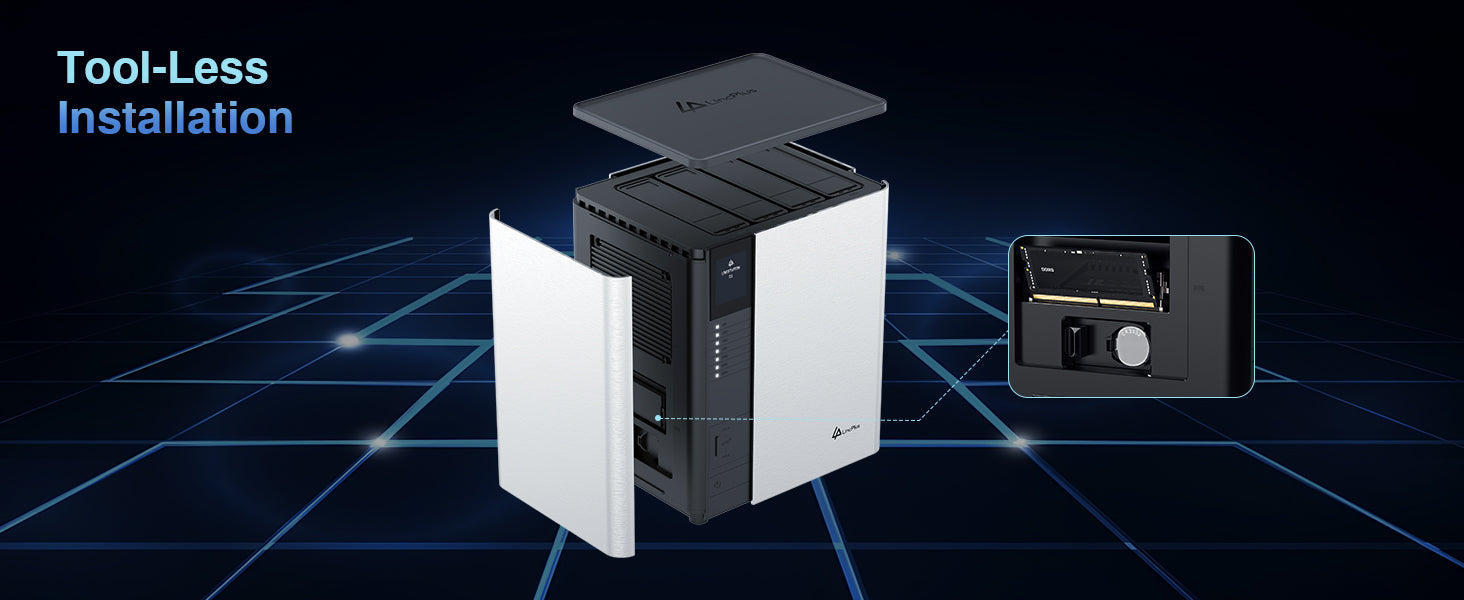

🔧Simple Setup, Smarter Control

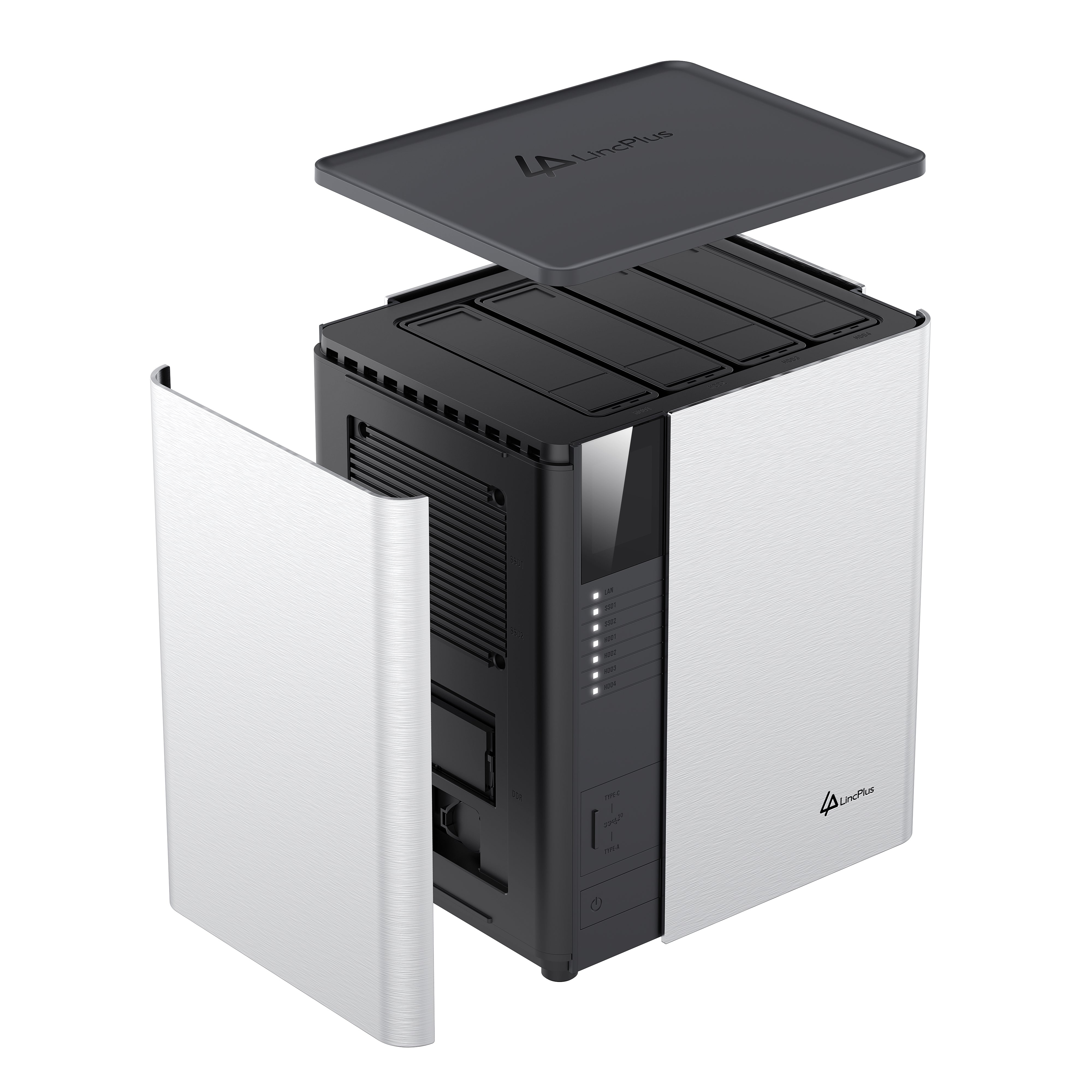

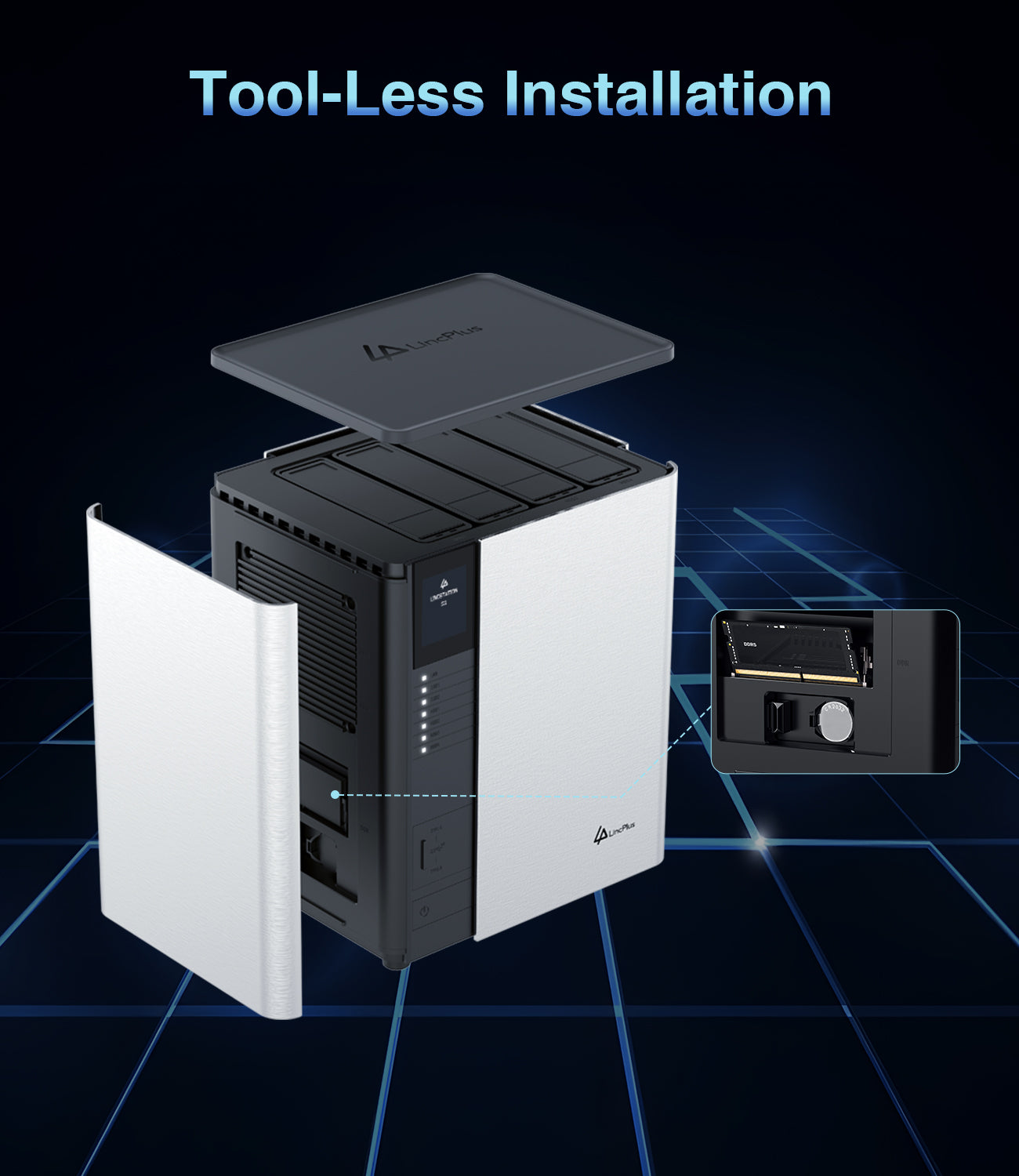

LincStation S1 features a unique tool-free design, allowing you to install or swap drives effortlessly—no screwdriver required.

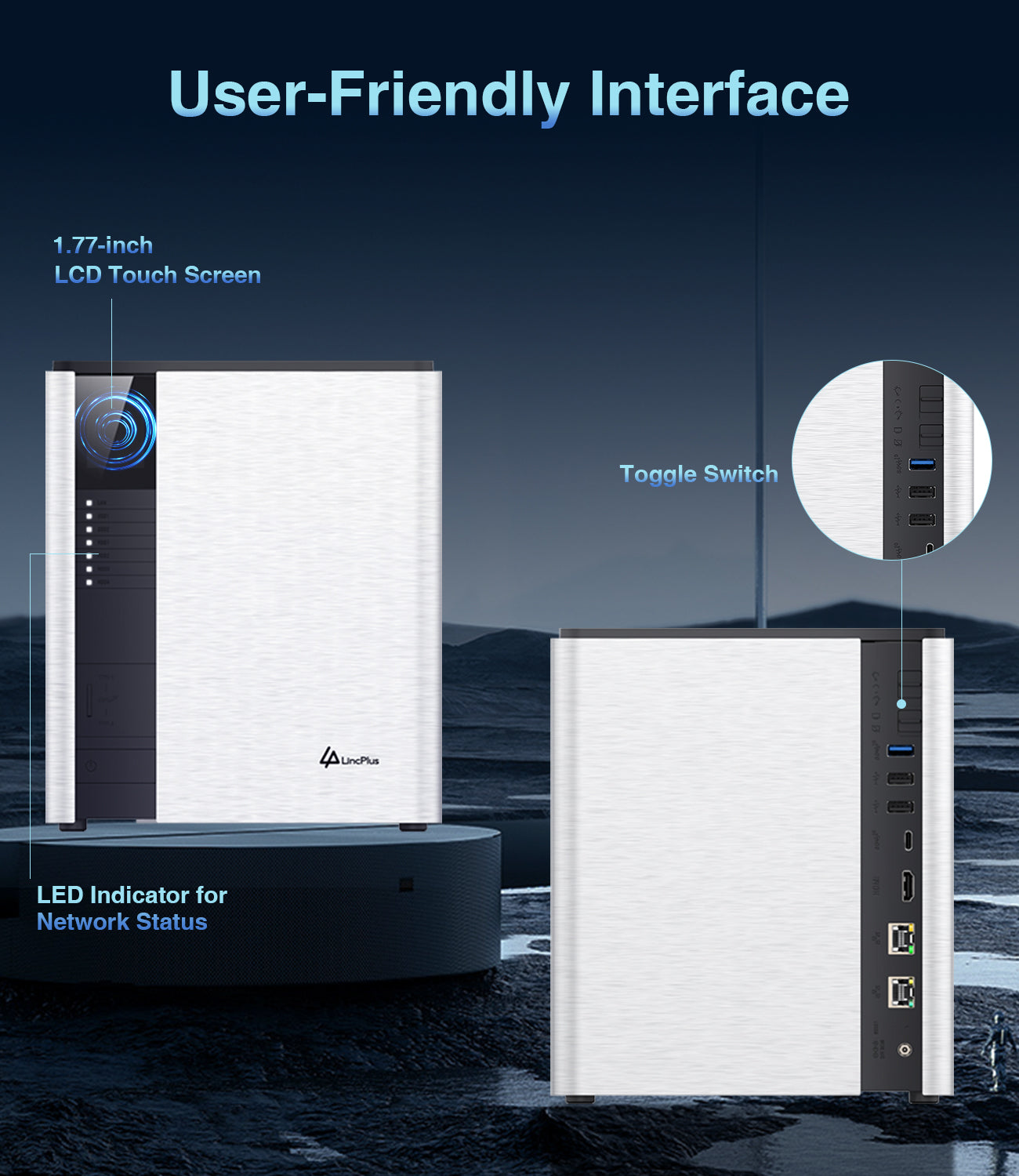

A built-in display and status LED indicators provide real-time system and drive information at a glance, making it easier
than ever to monitor your NAS health and performance.
🧩 Unraid OS – Powerful, Popular, and Easy to Use
The LincStation S1 comes pre-installed with Unraid OS. With access to more than 2400 apps—ranging from media servers to
development tools—Unraid makes it easy to build the NAS that fits your needs. Its intuitive web interface, multi-language support,
step-by-step tutorials, and active forums help users of all levels get started quickly and confidently.
Whether you're a beginner or a power user, Unraid turns your NAS into a fun and flexible hub for storage, streaming, and so much more.
Stay connected to your data anytime, anywhere with this NAS home personal cloud.
Access Your Files On-the-Go with this Network Attached Storage (NAS) ! Enjoy freedom and security as you effortlessly manage and share data from anywhere with remote access. Experience the convenience of a portable office – Your world, available anytime.
Featured On
FAQ
What is the maximum capacity?

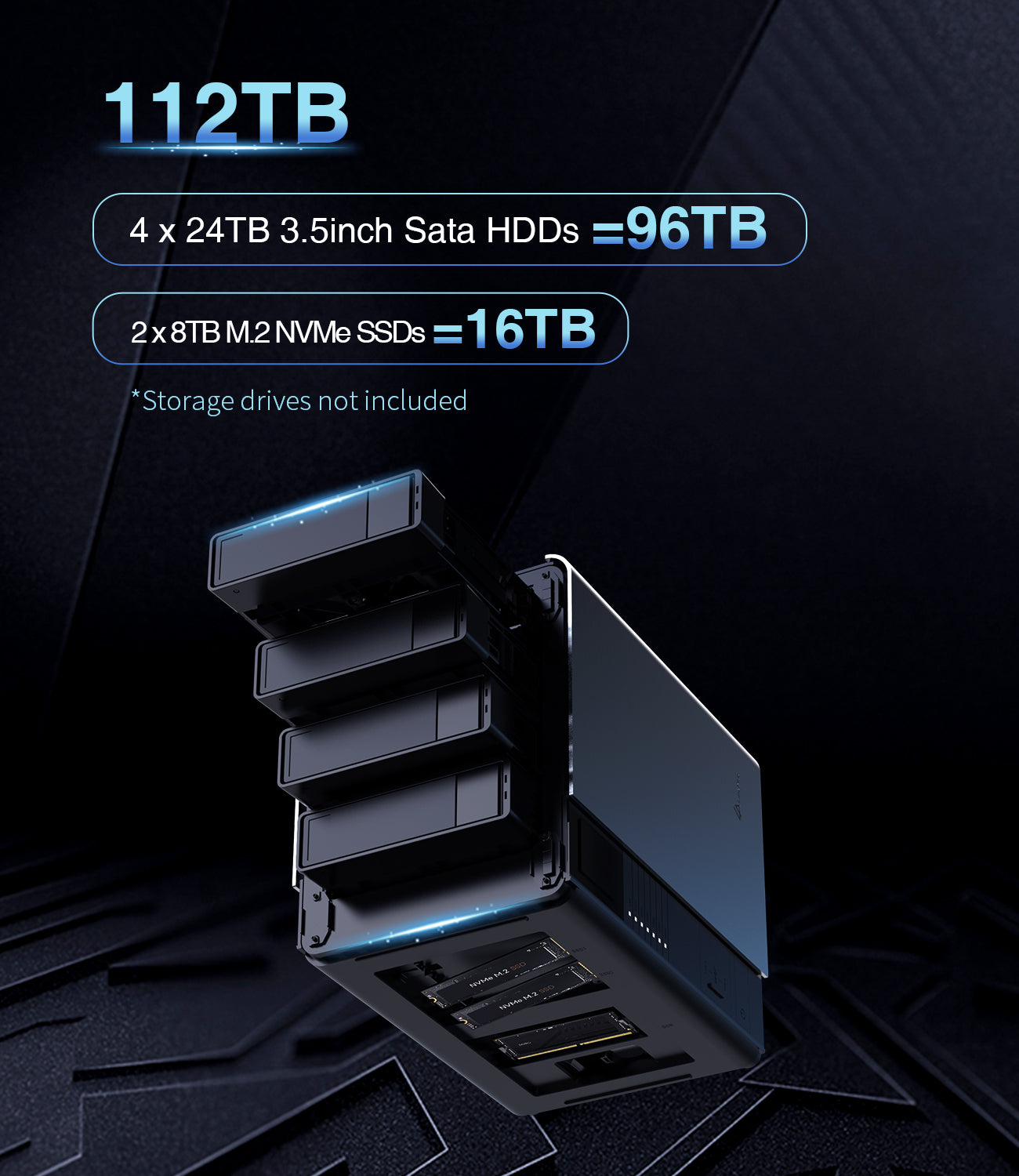

4X24TB 3.5-inch SATA HDDS + 2X8TB M.2 NVMe SSDs = 112TB
What Unraid license is included, and how does it work?
Included: Unraid Starter license.
Steps:
Start with a free 1-month trial (register on Unraid’s website).
Activate the license for 12 months of free access.
Post-12 months: Continue using your current version indefinitely.
Upgrading to newer Unraid versions requires a separate purchase.
Is Unraid easy to set up for beginners?
Yes! We provide:
Step-by-Step Tutorials: Partner YouTuber guides.
Detailed Manual: Setup tips and troubleshooting.
24/7 Support: Email or Facebook Group assistance.
What types of RAID configurations are supported? How do I strike a balance between redundancy and storage efficiency?
Supported RAID levels, (Cache Pool) RAID0, RAID1, RAID10, RAID5, RAID6, (Primary Array) Parity Disk for UNRAID
If you want to be more efficient, you can use cache pools
What types of hard drives are compatible with the NAS? Any specific requirements?
Can use 2.5-inch sata3 interface hdd or ssd, or 2280 specification nvme hard disk. The bay has a height limitation-9.5mm, it can support SATA HDDs that is thiner than 9.5mm.
How safe is it?
Unraid NAS safeguards your data with parity protection, isolated drives, user permissions, secure remote access, health monitoring, and continuous updates for enhanced security.
